Sturdier Hammer Union Pressure Transmitter for Mud pumps and Mud logging

Name: Sturdier Hammer Union Pressure Transmitter for Mud pumps and Mud logging
Brand: CSPPM
Price: 1 USD

Buy cheap Sturdier Hammer Union Pressure Transmitter for Mud pumps and Mud logging product

Brand Name : CSPPM

Model Number : PPM-T293A

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : CSPPM

Supply Ability : 1000pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Tested Media : Wet Soil,Oil,Corrosive liquidand gas

Pressure type : Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)

Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi

Supply Voltage : 10-32VDC

Output Signal : 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V

Installation : “1502” Hammer Union

Electrical Connection : Aviation connector or Direct outgoing

Combined Accuracy : 0.5%FS, 0.25%FS

Long-Term Stability : ≤ ± 0.1%FS/Year

Working medium temperature : -40~ +90ºC

Operating Temperature : -40~ +90ºC

Contact Now

5000/10000/20000 psi High accuracy Water Gas Oil Pressure Sensor Transducer

■ 4-20 mA, 2-wire Output

■ 0.25% Accuracy

■ Shock & Vibration Resistant

■ Zero & Span Adjustments

■ All-welded Construction

Applications

■ Oil & Gas Drilling

■ Mud Pumps / Mud Logging

■ Fracturing

■ Acidizing

■ Cementing

■ Standpipe

■ Stimulation

■ Well Head Measurement

■ Choke & Kill

■ Coiled Tubing

Technical Parameters :

Tested Media :	Wet Soil,Oil,Corrosive liquidand gas
Pressure type:	Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)
Full Scale Pressure Range :	0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi.
Supply Voltage :	10-32VDC
Output Signal:	4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation :	“1502” Hammer Union
Electrical Connection :	Aviation connector or Direct outgoing
Combined Accuracy :	0.5%FS, 0.25%FS
Long-Term Stability:	≤ ± 0.1%FS/Year
Working medium temperature :	-40~ +90ºC
Operating Temperature :	-40~ +90ºC

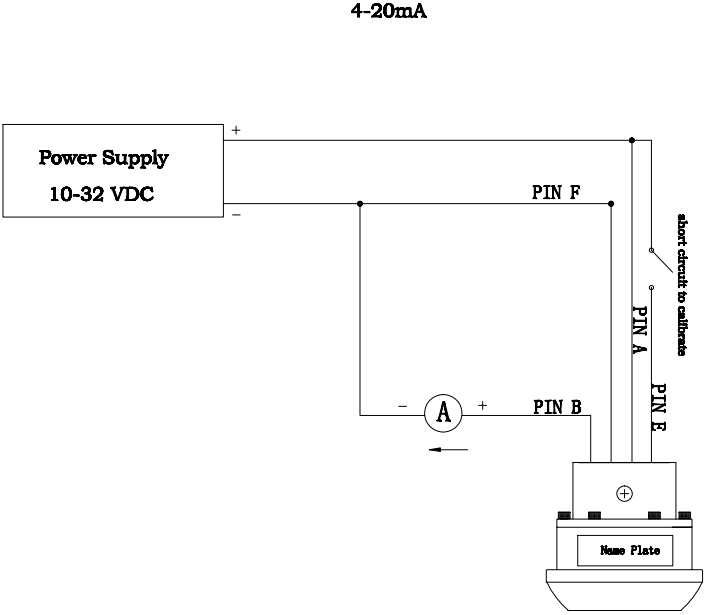

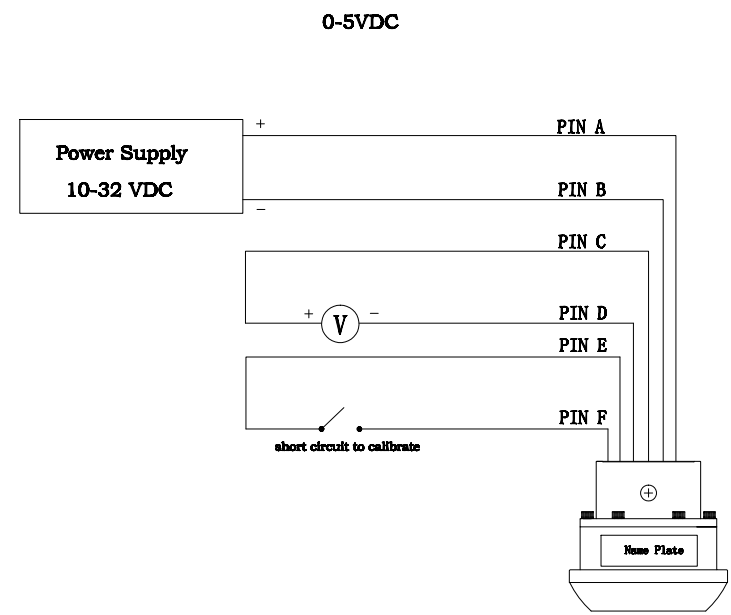

Definition of wiring:

Sturdier Hammer Union Pressure Transmitter for Mud pumps and Mud logging

Dimensions in mm :

Sturdier Hammer Union Pressure Transmitter for Mud pumps and Mud logging
